2D GNSS Land Leveller
2D GNSS Land Leveller by Apogee Agrotech India is an advanced GPS Land Leveler designed for high-precision land preparation. As a leading GNSS Leveling Machine, it supports efficient water usage and optimized crop growth. Trusted as a top-tier Smart Agriculture Equipment, it is one of the most reliable Precision Farming Tools in India, empowering farmers with accuracy, speed, and modern farming technology.
Features & Advantages
- The 2D GNSS Land Leveller uses global satellite navigation (GNSS) combined with laser technology to deliver ultra-precise land leveling.
- The integrated GNSS system constantly tracks position and elevation, adjusting the blade automatically in real-time.
- The smart control box and sensors enable automatic blade lifting and lowering based on pre-set elevation levels.
- The GNSS system features an intuitive display and smart controller, allowing even first-time users to operate the machine with confidence.
- By increasing precision, reducing resource use, and enhancing output, the Apogee 2D GNSS Land Leveller promotes modern, sustainable, and profitable agriculture.
Technical Specifications
|

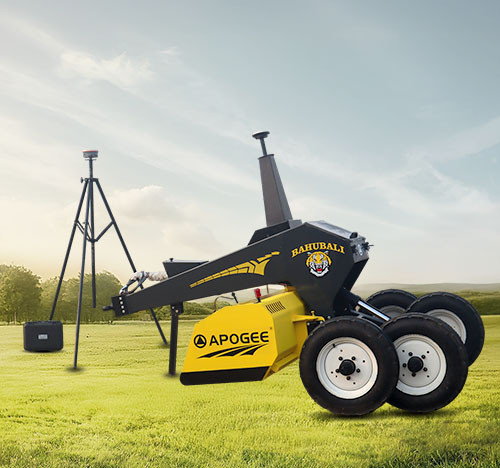

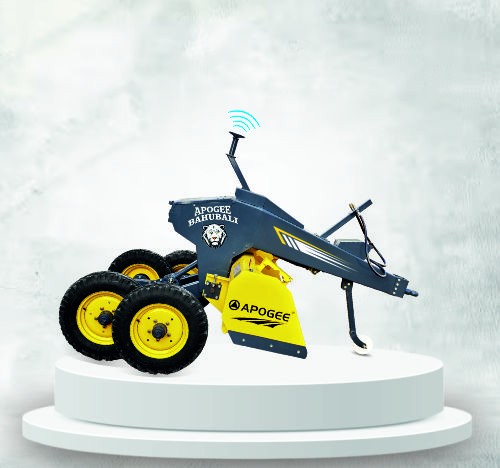

BAHUBALI SCRAPPER |

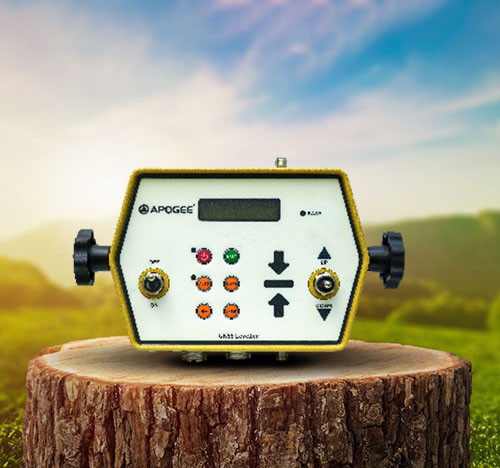

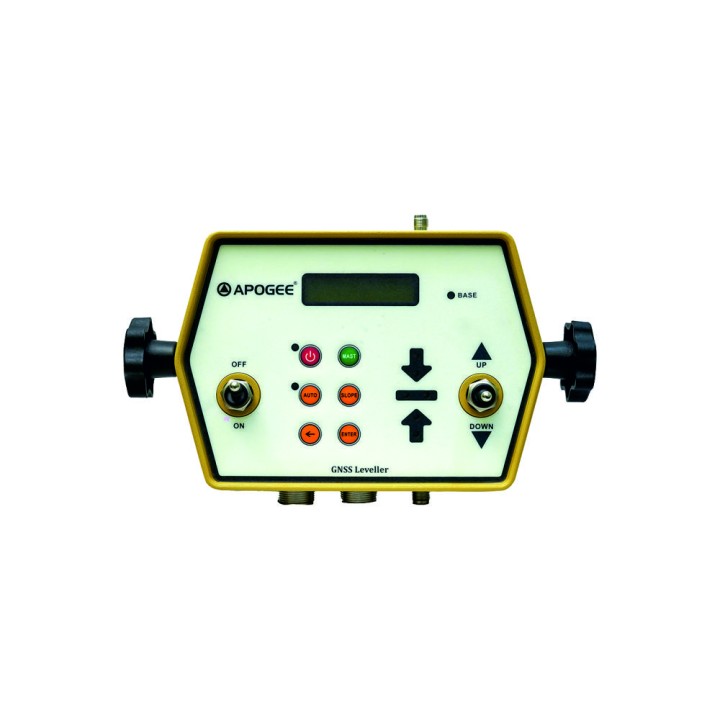

CONTROL BOX |

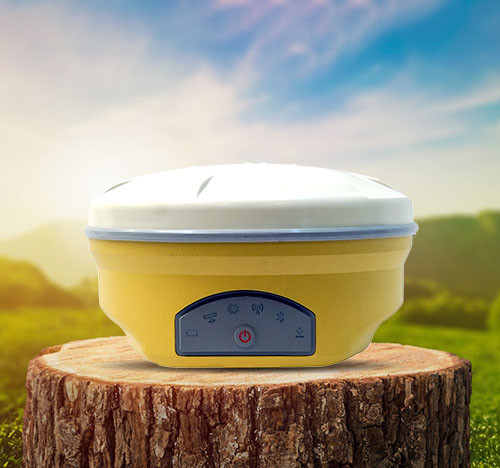

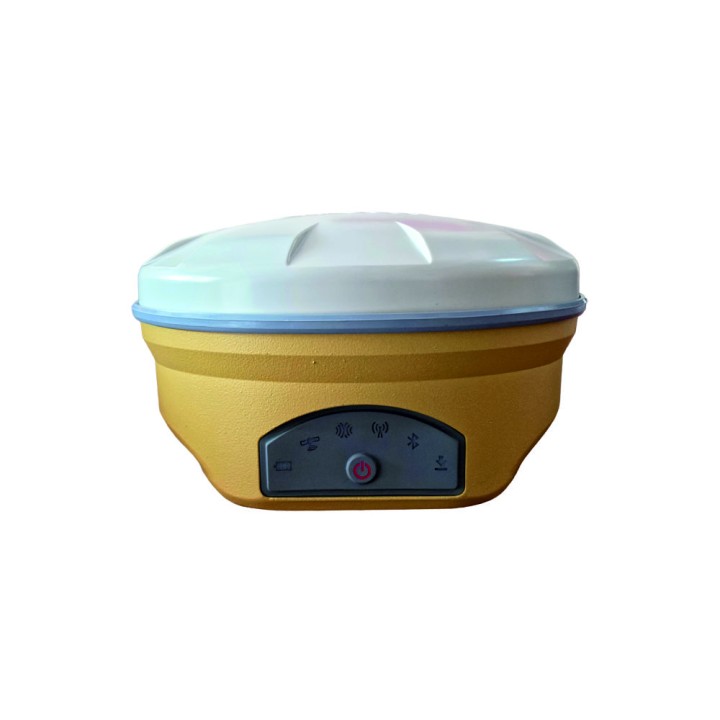

GNSS BASE |

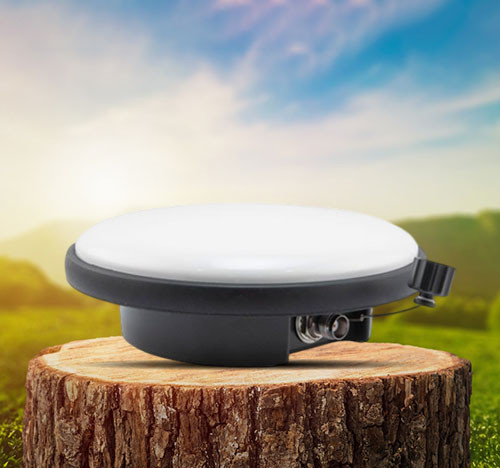

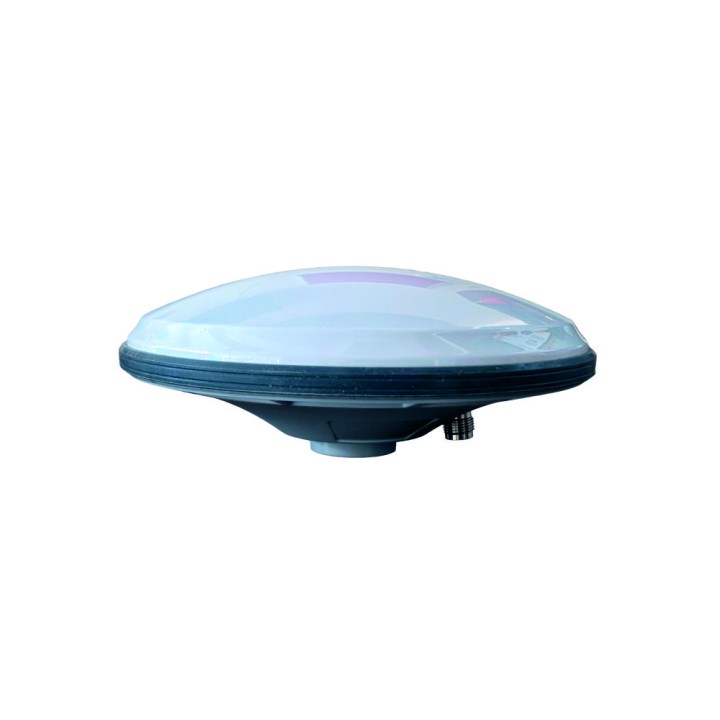

SATELLITE ANTENNA |
|
Weight- 820 kg |
Power Input - 12 Volt DC |
Power Input - 12 Volt DC |
Frequencies - GPS L1, L2, L5 / GLONASS L1, L2 / Galileo E1, E5 / Beidou B1, B2, B3
|
|
Width - 7 Feet |
Mode - Automatic & Manual |
Constellations - GPS, GLONASS, Galileo, Beidou, IRNSS |
|
|
Thickness - 8 mm / 10 mm |
Power Connector - Mil Type Connectors |
Operating Temperature - 0°C to +50°C |
|
|
Tractor requirement - 40 HP & above |
Valve Connector - Mil Type |
Storage Temperature - -10°C to +60°C |
|
|
Tyres - 6-16 SL double |
Receive Frequency - 866 MHz |
Transmit Frequency - 866 MHz (Indian Open Band) |
Constellations - GPS, GLONASS, Galileo, Beidou, IRNSS |
|
Mast – GNSS Mast (optional) |
Time Display |
Transmit Power - 1 watt |
|
|
Blade Length- 84 inches |
Ergonomic Design |
Transmit Range - Up to 2 km (diameter) |
|
|
Blade Height - 127 mm |
Latest GPS Technology |
LED Indication & Rugged Housing |
Multi Feed Design |
|
Blade Thickness - 16 mm |
Water & Dust Resistance |
Water & Dust Resistance |
Water & Dust Resistance |
