Features & Advantages

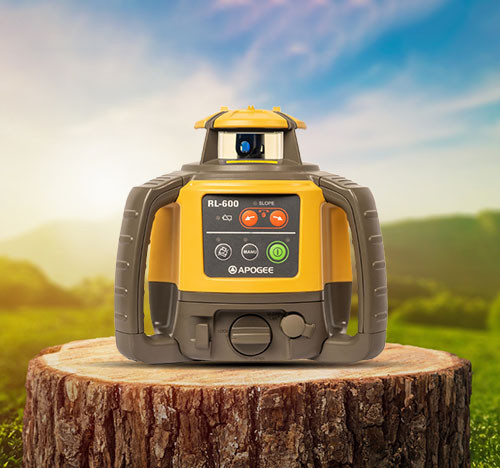

(RL – 600 Transmitter) Laser Level Transmitter
● Accuracy: ±10 mm
● Self-levelling range: ±5°
● Rotational Speeds: 600 r.p.m
● Status Alerts – High & Low Battery
● Operating Temperature -20 to 50°C (-4 to 122°F)
● Size – 104(W)×127(D)×37(H)mm
● Weight (Dry Battery Type): 2.3 kg (5.1 lbs with dry cell batteries)
● Weight (Rechargable Battery Type): 2.5 kg (5.5 lbs with BT-79Q)
● Dust and water Resistance: IP66
● Operating Range – up to 1000 m

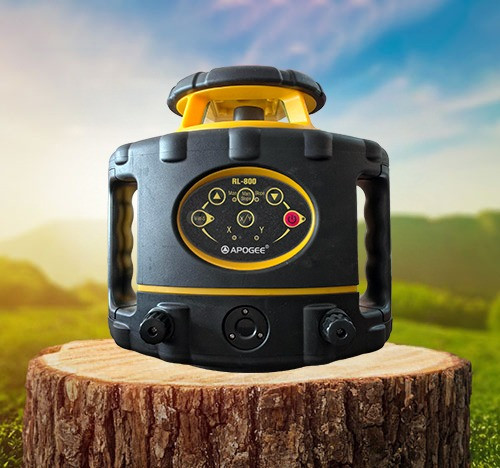

RL-800 Transmitter
● Operating Range – 600m
● Rotation Speed – 600rpm
● Power – 12 V DC Battery
● IP class – IP66
● IP66 Resistant – Water and Dust
● Diode – Red
● Laser Wavelength – 635 nm
● Levelling method – Auto Levelling
● Accuracy - ±0.075mm/m
● Output Lines – H-V
● Auto-Levelling Range - ±5°
● Weight – 2.4 kg
● Size – 219x160x202mm



RL-700 Transmitter
● Operating Temperature -20 to 50°C (-4 to 122°F)
● Accuracy: ±10 mm
● Self-levelling range: ±5°
● Rotational Speeds: 600 r.p.m
● Status Alerts – High & Low Battery
● Dust and water Resistance: IP66
● Operating Range – upto 1000 m
● Weight (Dry Battery Type): 2.3 kg (5.1 lbs with dry cell batteries)
● Size – 172(W) x 211(D) x 205(H) mm
