Fighter Zero Slope Laser Land Leveller
Fighter Zero Slope Laser Land Levelling Kit by Apogee Agrotech is engineered for robust and accurate field operations. Designed for heavy-duty tractors and tough terrains, the kit includes the Fighter series leveller with zero slope control, precision laser transmitter, durable receiver, user-friendly control panel, and a strong bucket scrapper. This kit helps farmers save water, increase crop yields, and achieve consistent land levels with every use.
Features & Advantages
- Specially designed for achieving an absolutely flat field surface, the Fighter Zero Slope model eliminates even the slightest elevation differences—maximizing water efficiency and uniform crop growth.
- Built with high-grade steel and a toughened chassis, this leveller is engineered to handle hard, dry, and uneven soils with ease, delivering consistent performance under pressure.
- The Fighter Zero Slope comes equipped with a wide blade design that covers more area in each pass, reducing leveling time and boosting productivity—perfect for medium to large farms.
- Precision leveling means fewer field passes, which leads to lower diesel consumption and reduces the need for manual supervision—saving time and money.
- Designed to support modern farming practices, this leveller pairs well with GPS systems and other smart agricultural tools, making it ideal for future-ready farmers.
- Integrated with high-sensitivity laser receivers and a smart control unit, it offers millimeter-level accuracy and ensures error-free land leveling without manual recalibration.
Technical Specifications
|

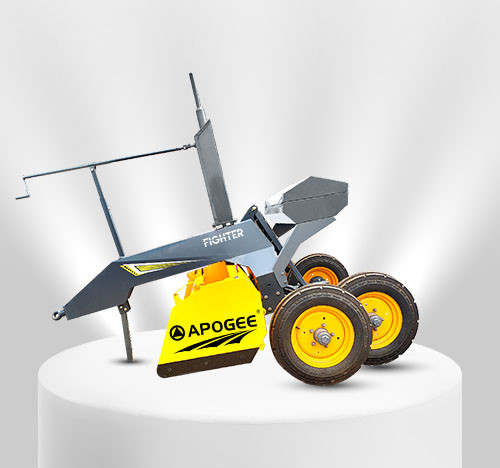

FIGHTER (SPORTS) BUCKET SCRAPPER |

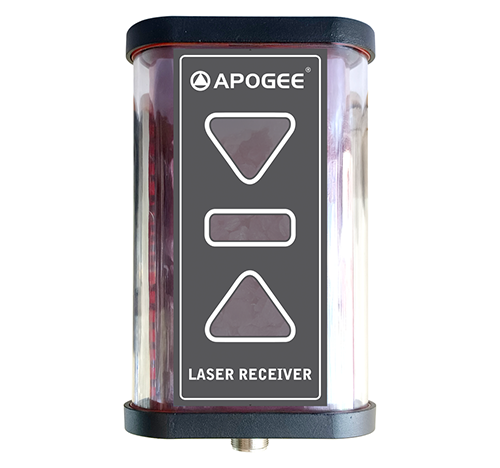

LD LASER RECEIVER |

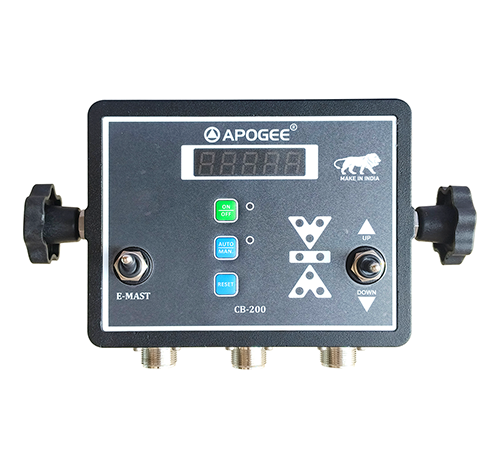

CONTROL BOX (CB 200) |
LASER LEVEL TRANSMITTER |
|
|

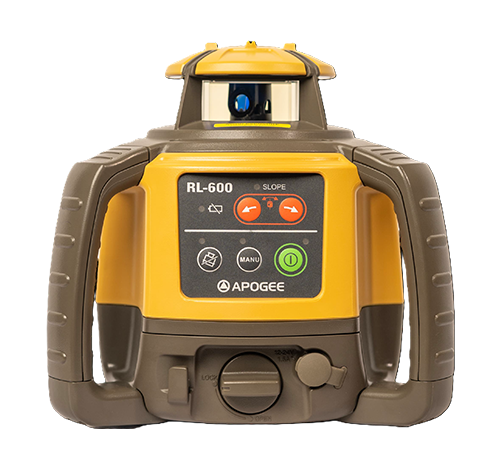

RL – 600 |
RL-700
|
|||
|
Weight - 750 kg |
Reception Range :360° |
Operating Voltage:- 10-18 Volt DC |
Accuracy: ±10 mm |
Operating Range – 600m |
|
Width - 7 feet
|
Reception Length : 200mm |
Updated Technology |
Self-levelling range: ±5° |
Rotation Speed – 600rpm |
|
Thickness - 8mm / 10 mm |
Up/Down Indication LEDs |
Ergonomic Design |
Rotational Speeds: 600 r.p.m |
Power – 12 V DC Battery |
|
Tractor Requirement - 40 HP and Above |
Strong Dual Mounting |
Heavy Mounting stand |
Status Alerts – High & Low Battery |
IP class – IP66 |
|
Tyres - 6-16 SL double |
Glass Protection
|
Time Display
|
Operating Temperature -20 to 50°C (-4 to 122°F) |
IP66 Resistant – Water and Dust
|
|
Mast – Power/Gear Mast (optional)
|
Led Indication |
Connection error messages |
Size – 104(W)×127(D)×37(H)mm |
Diode – Red |
|
BLADE Length- 84 inches
|
|
Metal Body |
Weight (Dry Battery Type): 2.3 kg (5.1 lbs with dry cell batteries) |
Laser Wavelength – 635 nm |
|
BLADE Height - 127 mm
|
|
|
Weight (Rechargable Battery Type): |
Levelling method – Auto Levelling |
|
BLADE Thickness - 16 mm |
|
|
|
Accuracy - ±0.075mm/m |
|
- |
|
|
|
Output Lines – H-V |
|
- |
|
|
|
Auto-Levelling Range - ±5° Size – 219x160x202mm |
