Zero Slope Bahubali Laser Land Leveller
Apogee’s Bahubali Zero Slope Laser Levelling Kit offers a complete precision farming solution. This integrated setup includes a robust Bahubali land leveller, high-accuracy laser receiver, rugged control panel, bucket scrapper, and long-range laser transmitter. Engineered for large-scale Indian farms, it ensures uniform land levelling, water savings, and increased yield.
Features & Advantages
- Apogee’s zero level laser leveller tool is designed for efficiency, which saves your precious time to focus on other essential farm tasks.
- This electronic kit includes various types of laser transmitters, laser receivers, and control boxes with different working ranges.
- It features specially designed buckets that guarantee proper soil cutting and handling.
- This type of laser guided land leveller helps to achieve unparalleled accuracy in land levelling and ensures a perfectly even surface for optimal crop growth.
- It positions you at the forefront of modern agriculture, ensuring that your farming practices align with the latest advancements.
- Invest in a tool that not only enhances productivity but also proves to be a cost-effective solution in the long run. Minimize the need for manual labour and reduce operational costs with our efficient land leveling kit.
Technical Specifications
|

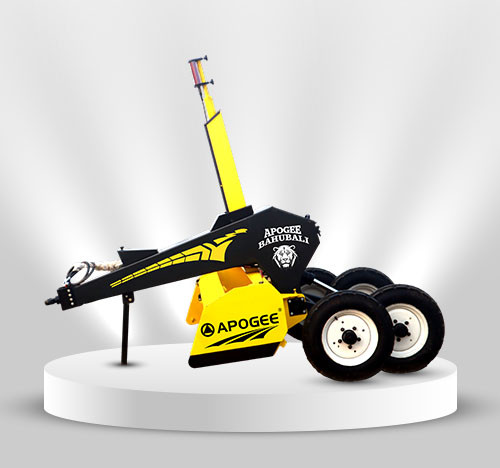

BAHUBALI BUCKET SCRAPPER |
LD LASER RECEIVER |

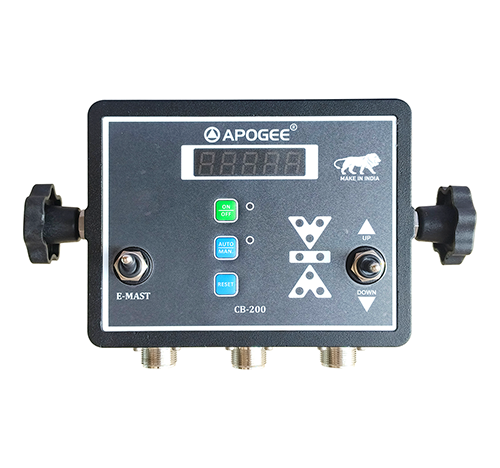

CONTROL BOX (CB 200) |
LASER LEVEL TRANSMITTER |
|
|

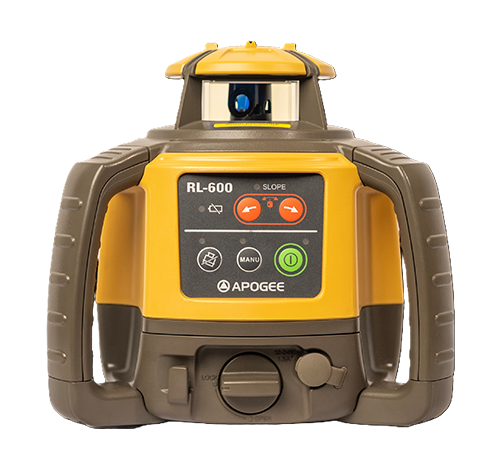

RL – 600 |

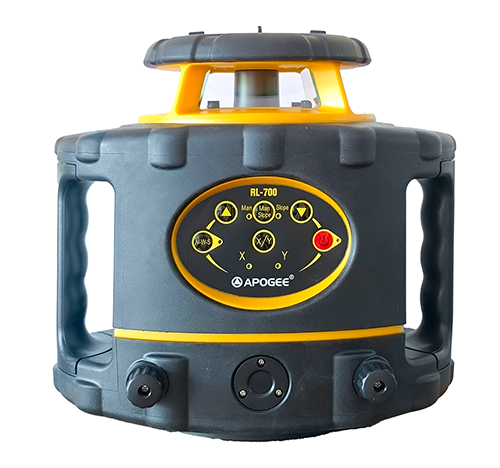

RL-700
|
|||
|
Weight - 820 kg |
Reception Range :360° |
Operating Voltage:- 10-18 Volt DC |
Accuracy: ±10 mm |
Operating Range – 600m |
|
Width - 7 feet |
Reception Length : 200mm |
Updated Technology |
Self-levelling range: ±5° |
Rotation Speed – 600rpm |
|
Thickness - 8mm / 10 mm |
Up/Down Indication LEDs |
Ergonomic Design |
Rotational Speeds: 600 r.p.m |
Power – 12 V DC Battery |
|
Tractor Requirement - 40 HP and Above |
Strong Dual Mounting |
Heavy Mounting stand |
Status Alerts – High & Low Battery |
IP class – IP66 |
|
Tyres - 6-16 SL double |
Glass Protection |
Time Display |
Operating Temperature -20 to 50°C (-4 to 122°F) |
IP66 Resistant – Water and Dust
|
|
Mast – Power/Gear Mast (optional)
|
Led Indication |
Connection error messages |
Size – 104(W)×127(D)×37(H)mm |
Diode – Red |
|
BLADE Length- 84 inches
|
|
Metal Body |
Weight (Dry Battery Type): 2.3 kg (5.1 lbs with dry cell batteries) |
Laser Wavelength – 635 nm |
|
BLADE Height - 127 mm
|
|
|
Weight (Rechargable Battery Type): |
Levelling method – Auto Levelling |
|
BLADE Thickness - 16 mm |
|
|
|
Accuracy - ±0.075mm/m |
|
- |
|
|
|
Output Lines – H-V |
|
- |
|
|
|
Auto-Levelling Range - ±5° Size – 219x160x202m |
