Standard Zero Slope Laser Land Leveller
Apogee Standard Zero Slope Laser Land Levelling Kit delivers reliable and consistent levelling performance for medium to large Indian farms. This set includes a Standard Zero Slope Leveller, precision Laser Receiver, rugged Control Panel, wide-range Laser Transmitter, and efficient Bucket Scrapper – perfect for reducing water usage and increasing crop uniformity.
Features & Advantages
- Designed to provide a completely flat field surface, the Standard Zero Slope model uses advanced laser technology to achieve pinpoint leveling precision—perfect for uniform water distribution.
- Made with high-strength steel and engineered for stability, this model offers long-lasting performance across different soil conditions while being easy to maneuver on standard tractors.
- The leveller’s well-balanced blade width ensures optimal area coverage while maintaining efficiency—ideal for small to mid-sized farms.
- The Standard model is lighter than premium models like Bahubali but maintains excellent strength and durability—making it both cost-effective and reliable.
- Combining affordability with high performance, the Standard Zero Slope Laser Land Leveller offers excellent return on investment for budget-conscious farmers.
- Zero slope leveling allows even water flow and absorption, reducing water usage by up to 35–40% and preventing wastage due to runoff or waterlogging.
Technical Specifications
|

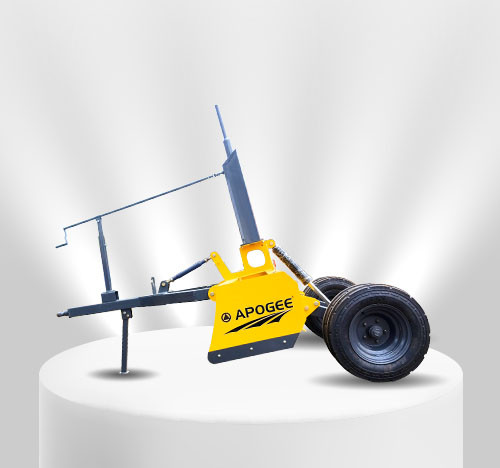

STANDARD BUCKET SCRAPPER |

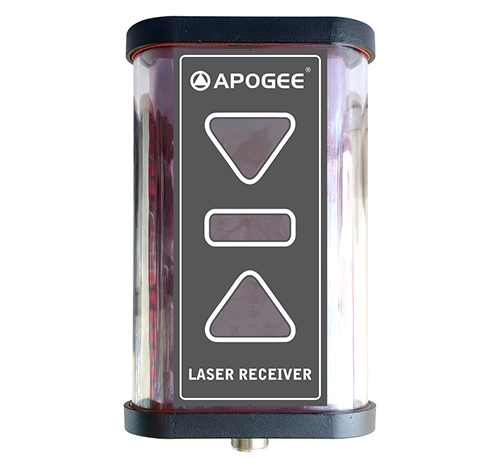

LD LASER RECEIVER |

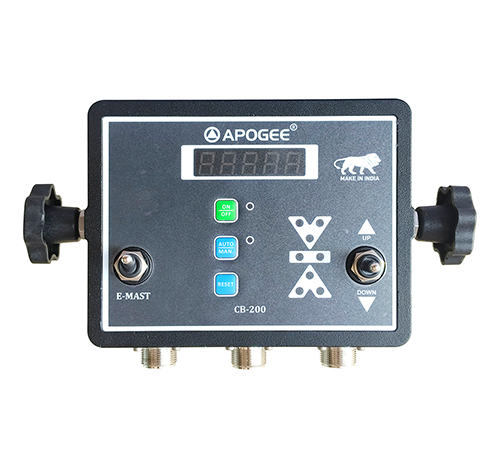

CONTROL BOX (CB 200) |
LASER LEVEL TRANSMITTER |
|
|

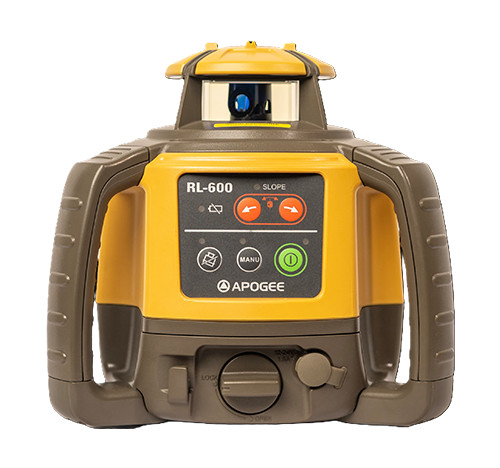

RL – 600 |

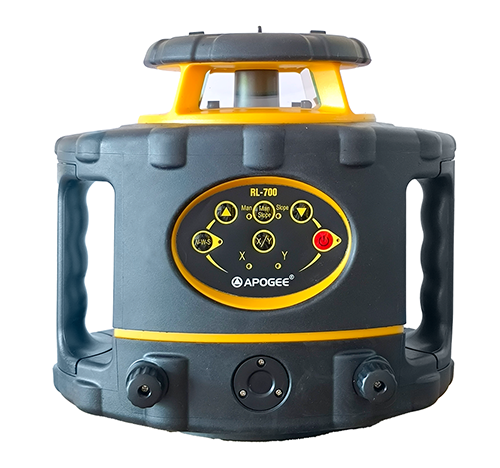

RL-700
|
|||
|
Rigid structure |
Reception Range :360° |
Operating Voltage:- 10-18 Volt DC |
Accuracy: ±10 mm |
Operating Range – 600m |
|
Weight - 590 kg |
Reception Length : 200mm |
Updated Technology |
Self-levelling range: ±5° |
Rotation Speed – 600rpm |
|
Heavy Duty:- 8/10 mm sheet |
Up/Down Indication LEDs |
Ergonomic Design |
Rotational Speeds: 600 r.p.m |
Power – 12 V DC Battery |
|
Tractor Requirement - 40 HP and Above |
Strong Dual Mounting |
Heavy Mounting stand |
Status Alerts – High & Low Battery |
IP class – IP66 |
|
Width:- 6 / 6.5/ 7 ft (good for upto 45/50/60 HP tractors consequently.) |
Glass Protection
|
Time Display
|
Operating Temperature -20 to 50°C (-4 to 122°F) |
IP66 Resistant – Water and Dust
|
|
Tyres - 6-16 SL double |
Led Indication |
Connection error messages |
Size – 104(W)×127(D)×37(H)mm |
Diode – Red |
|
Mast – Power/Gear Mast (optional) |
|
Metal Body |
Weight (Dry Battery Type): 2.3 kg (5.1 lbs with dry cell batteries) |
Laser Wavelength – 635 nm |
|
Axle – Straight Axle Available, zig-zag axle not available |
|
|
Weight (Rechargable Battery Type): |
Levelling method – Auto Levelling |
|
Tyres - 2 and 4 tyre (options) Available |
|
|
|
Accuracy - ±0.075mm/m |
|
- |
|
|
|
Output Lines – H-V |
|
- |
|
|
|
Auto-Levelling Range - ±5° Size – 219x160x202mm
|
